Mako Partial Knee

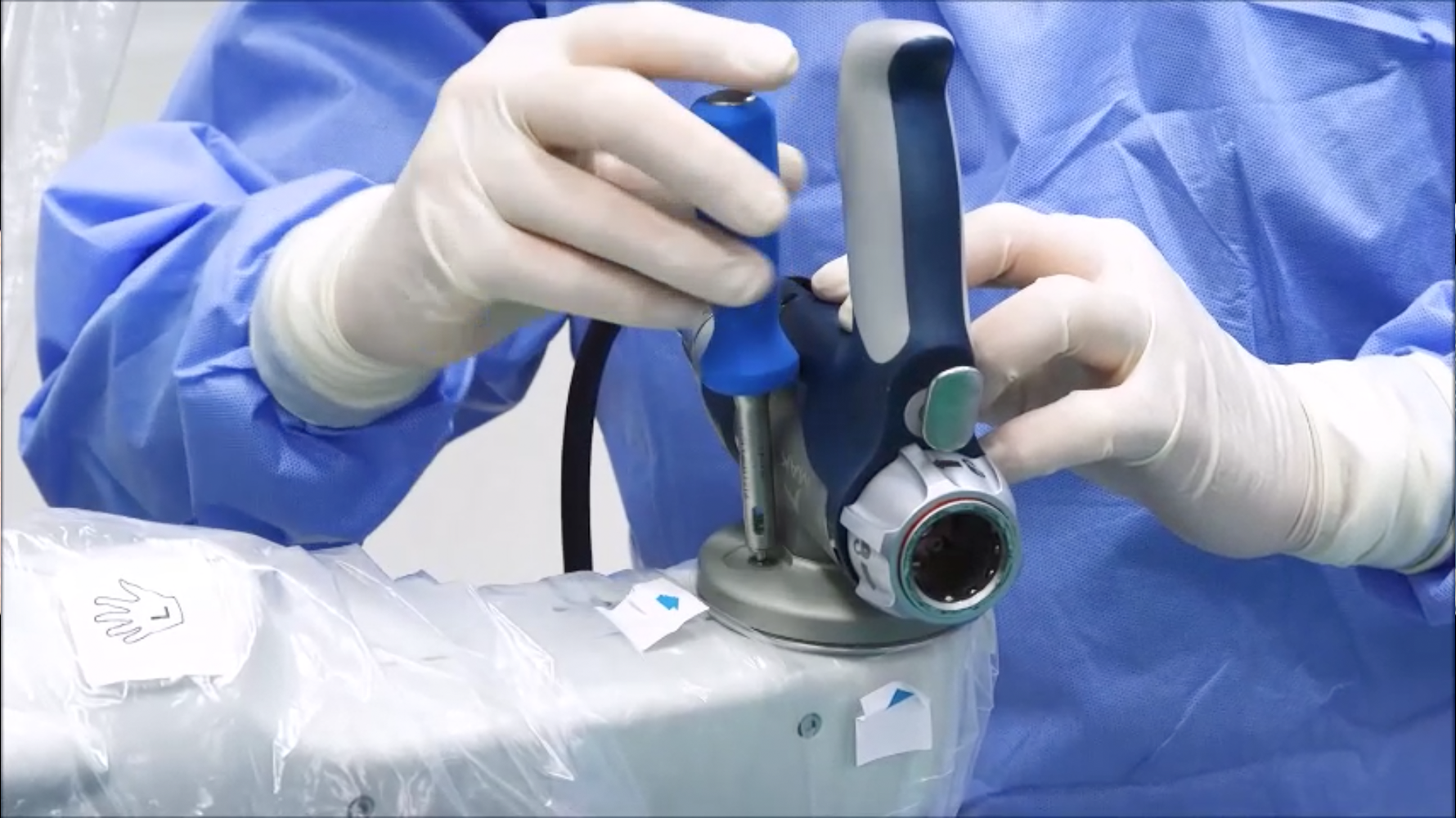

attach the end effector
Demo:

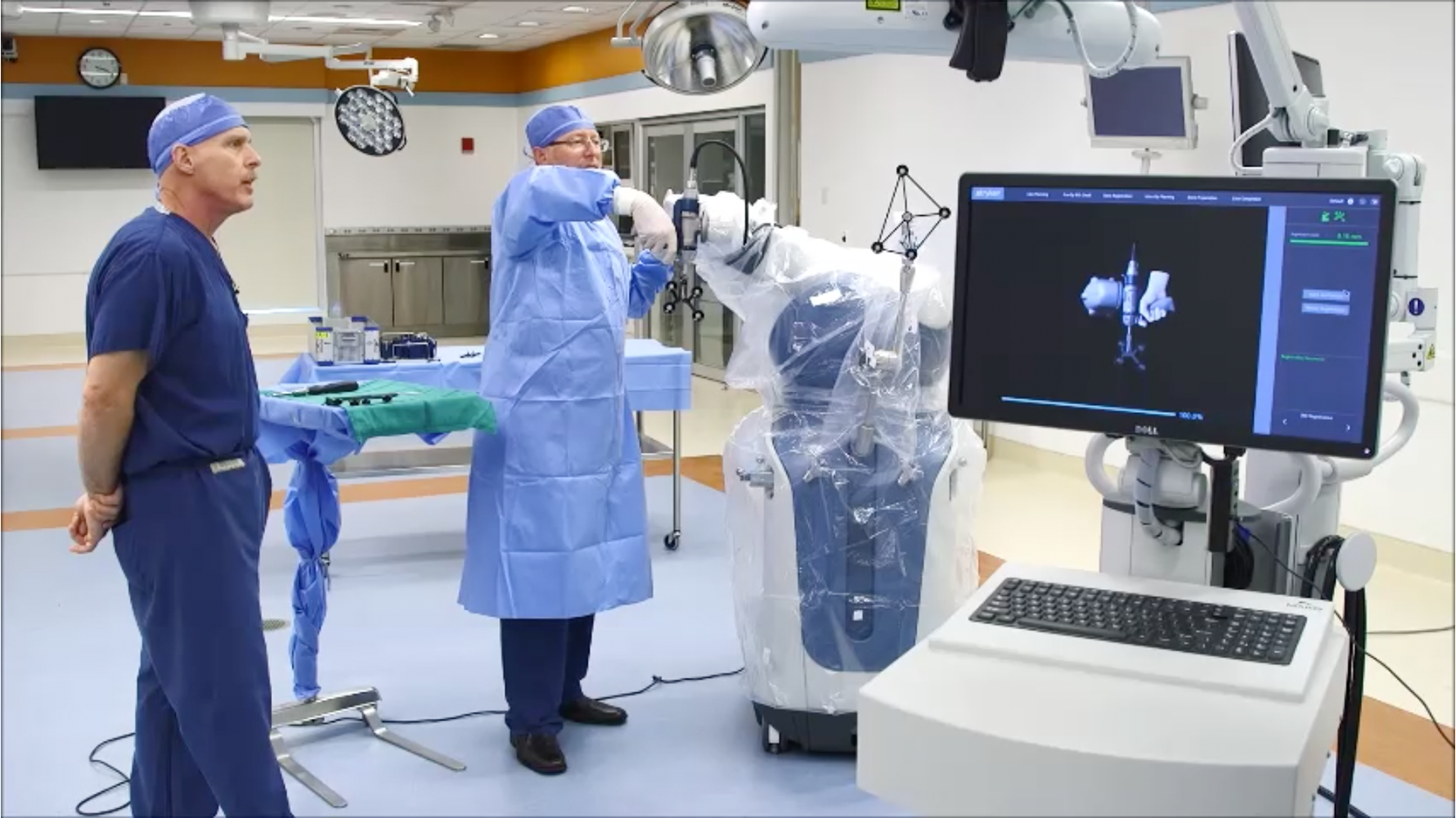

Mako System registration
Demo:

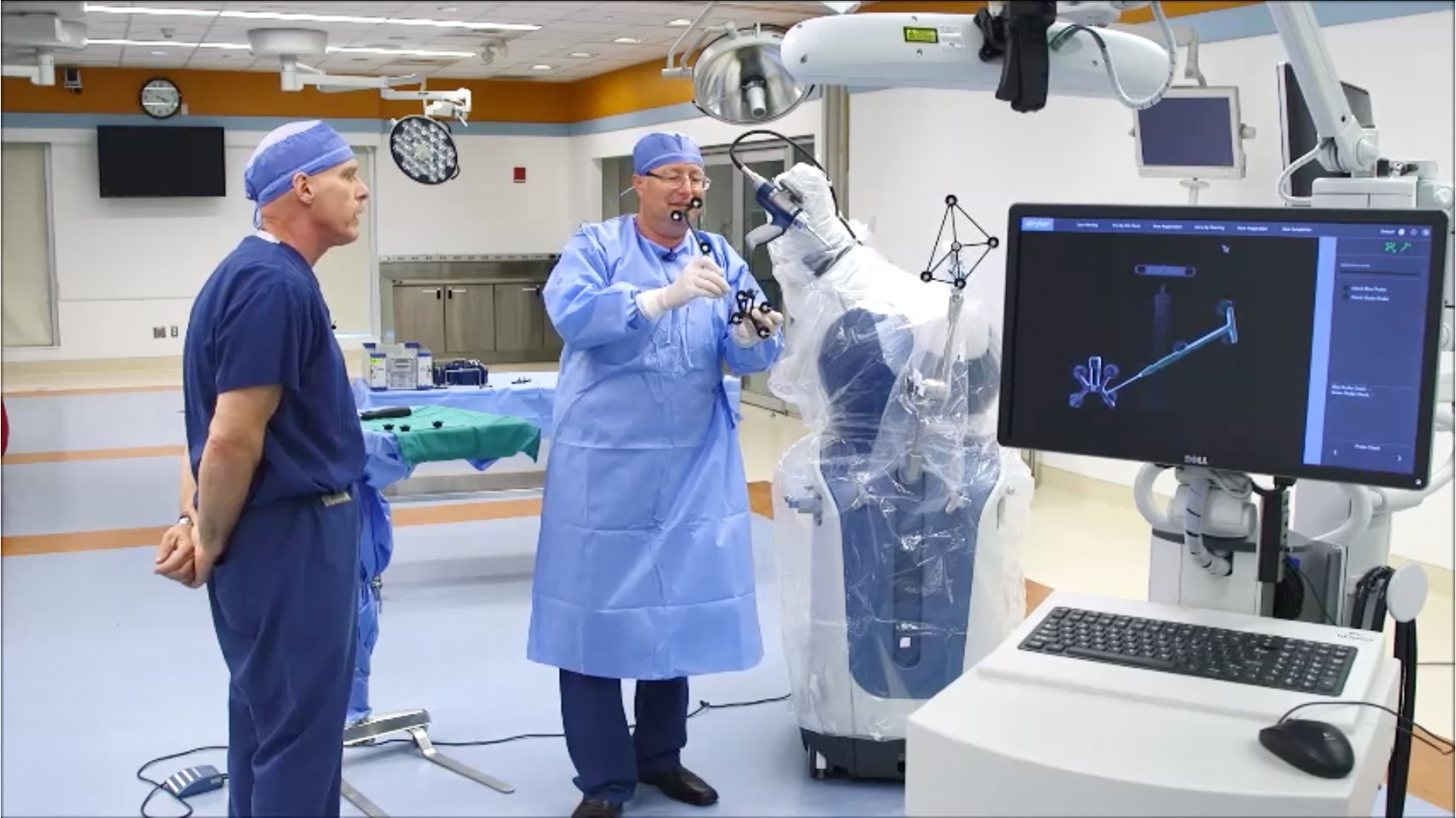

probe check
Demo:
instrument prep: overview

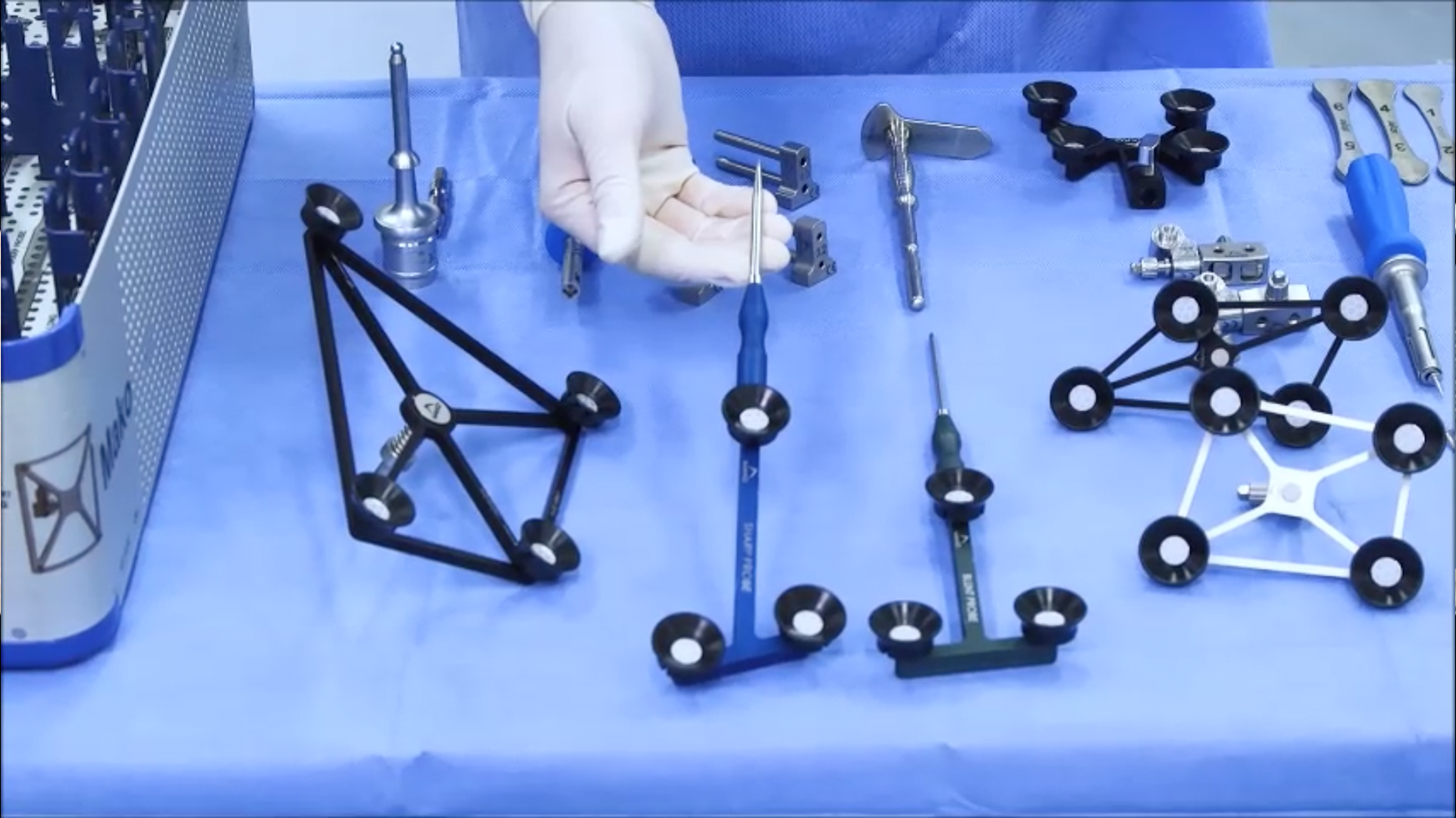

Instrumentation overview demo:

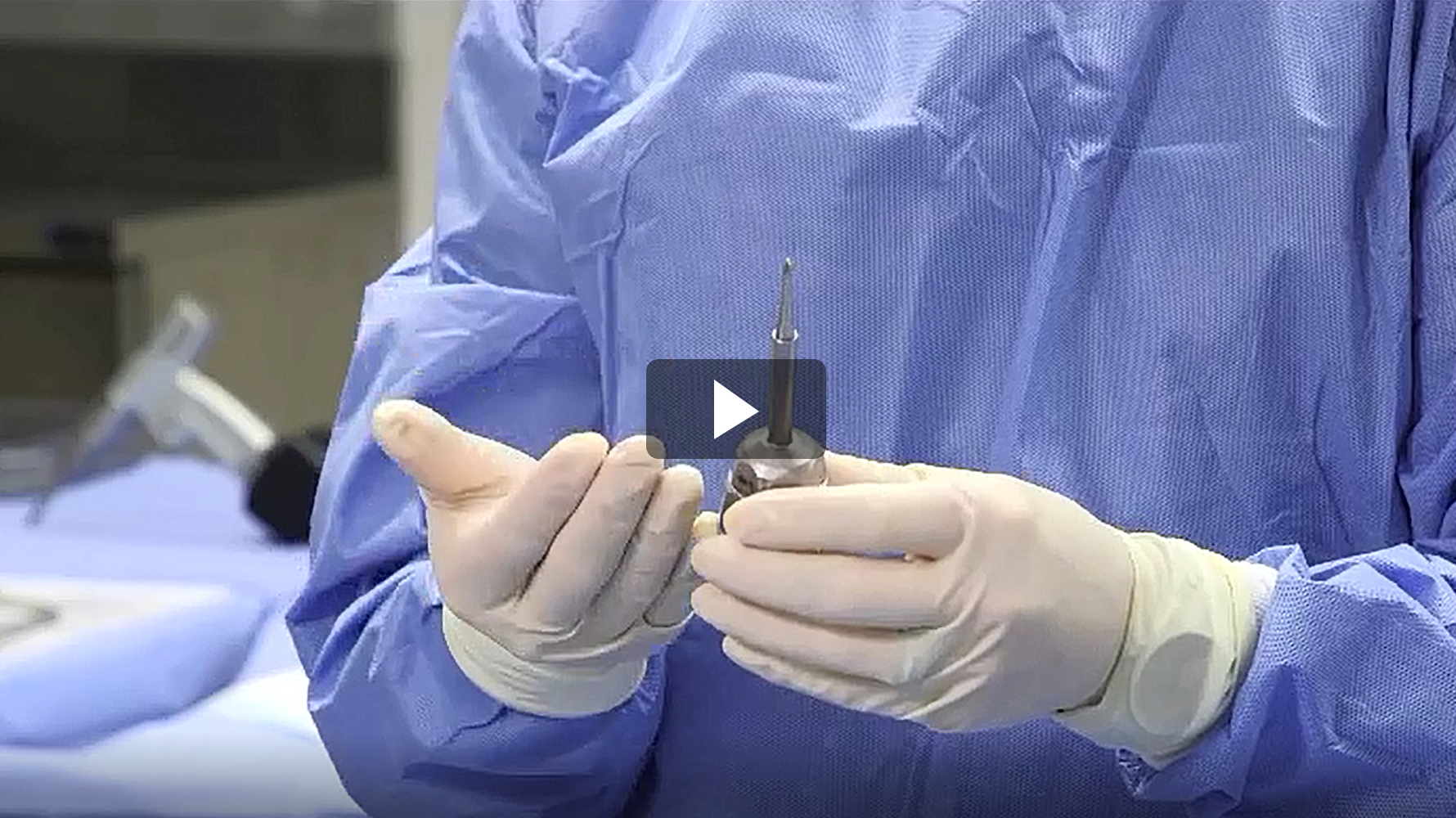

Burr assembly demo:

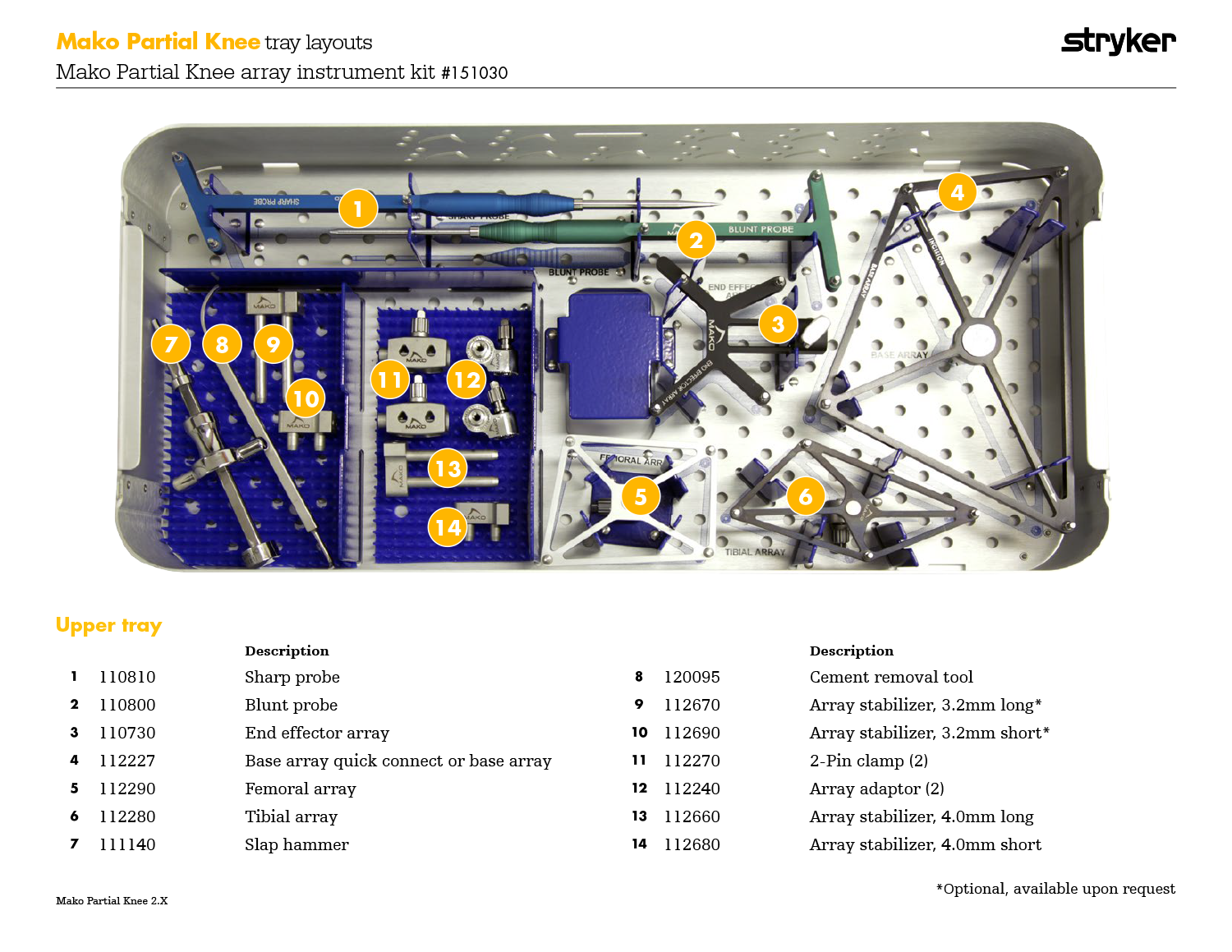

instrument prep: tray layouts
Labeled trays:

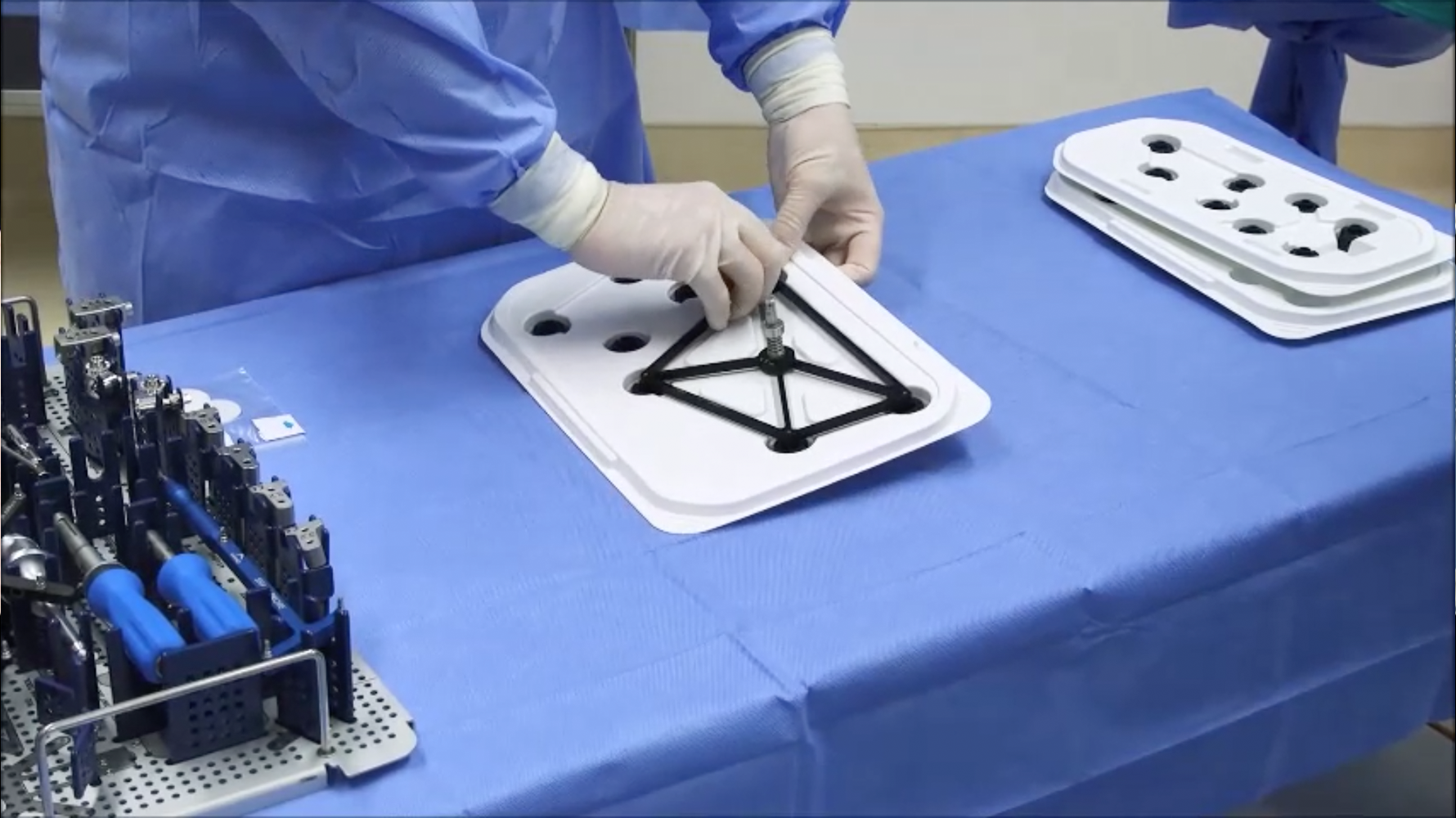

instrument prep: VIZADISC assembly
VIZADISC assembly is performed by the sterile staff.
Remove VIZADISC from the box and remove sterile top sheet.

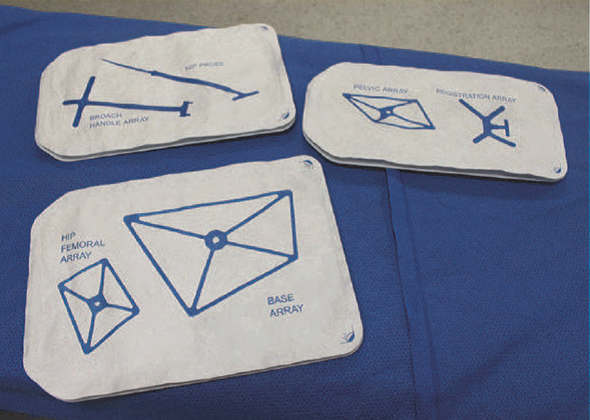

The VIZADISC is arranged in patterns that exactly match the geometry of the arrays and the probes.

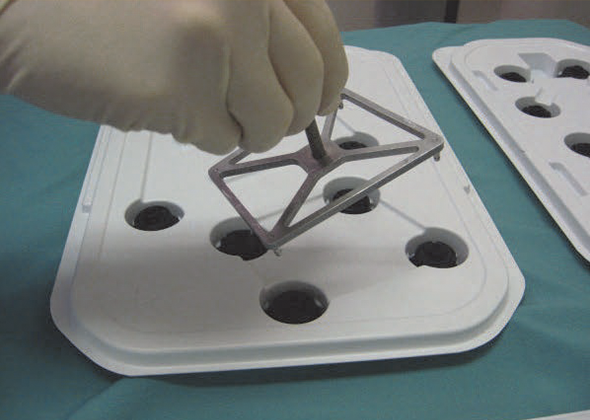

Place the chosen arrays over the appropriate layout.

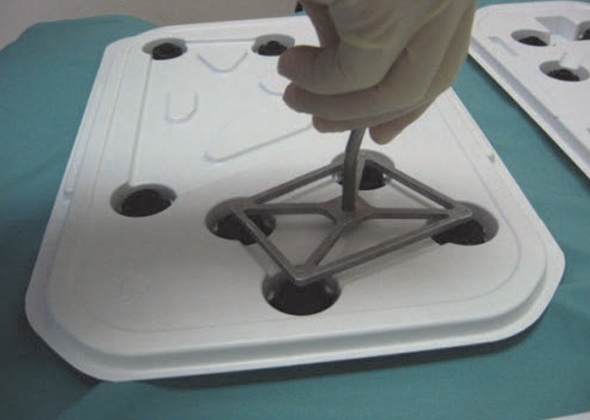

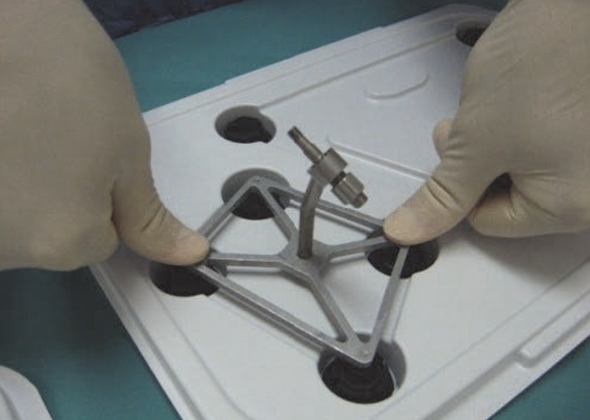

With the VIZADISC tray on a stable platform, press the array onto the VIZADISC.

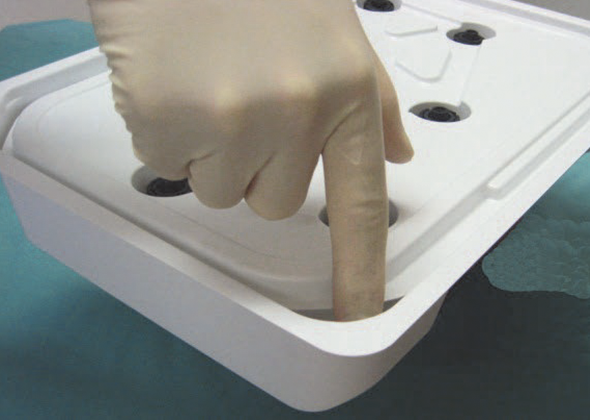

Press each VIZADISC until a distinct snap is felt.

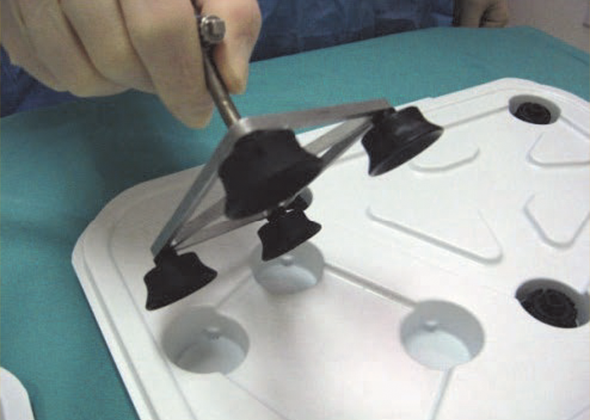

Lift the array from the tray at an angle, ensuring the VIZADISC is securely attached.
no gap
Visually inspect to ensure there are no gaps between the array and the VIZADISC.
Demo:

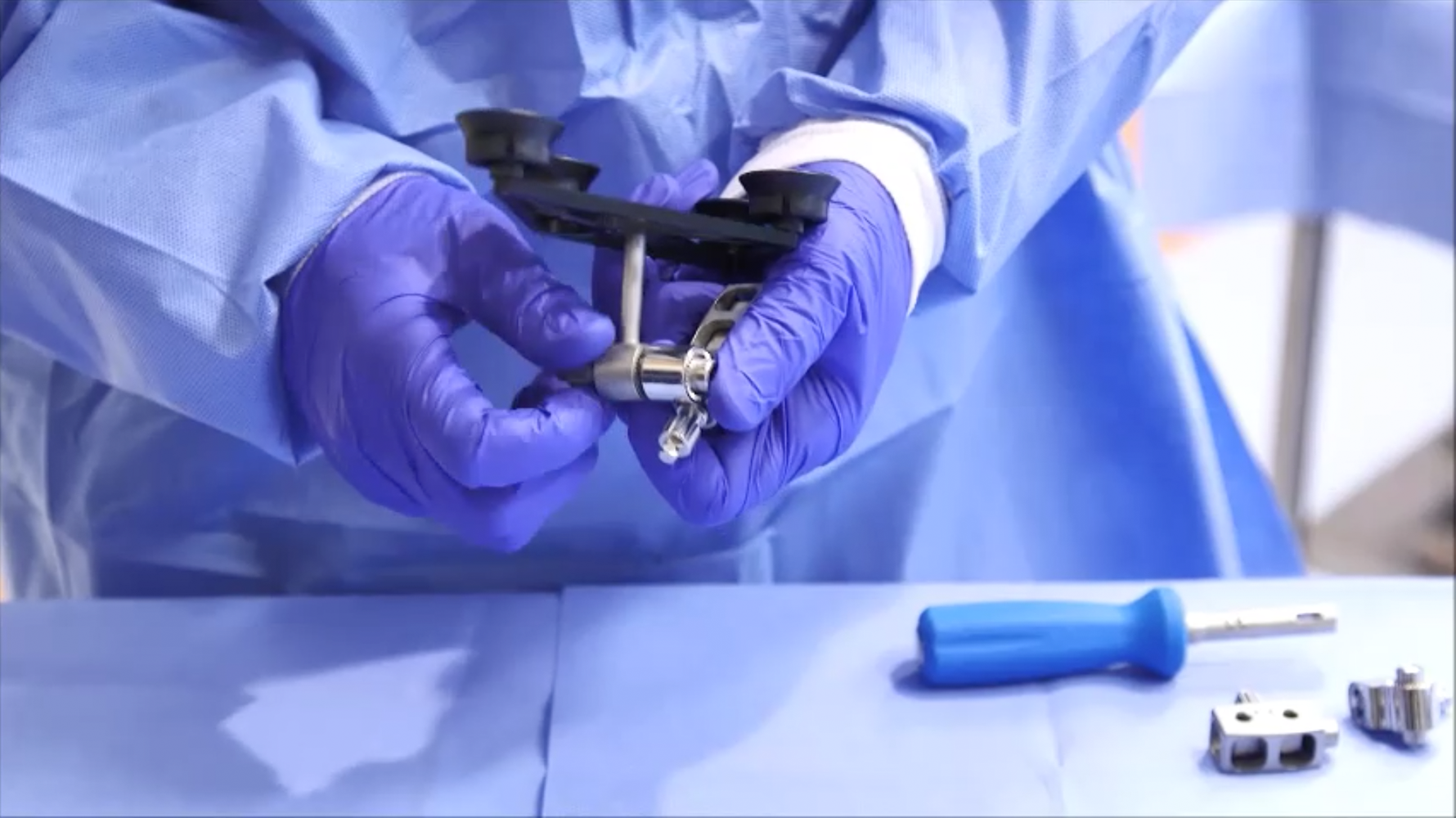

array clamp assembly
Demo:
